Thermal design
- Cooling/heating tanks: BatchTank®
- Shell and tube heat exchanger: HTRI Xchanger Suite®, Xist
- Welded plate heat exchangers: CapBloc®, CapBox®
- Gasketed plate heat exchanger: PHECAL®
Our offer
Cap Engineering offers you thermal and mechanical design for your heat exchanger
Mechanical design

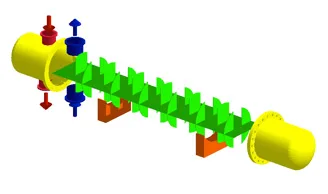

- Cubic shape: CapCub®
- Shell and tube, pressure vessels PV Elite
- According to ASME, EN13445
Our ambition: to guarantee the best economical solution for the best efficiency
As HTRI members, our engineers attend training sessions every year to improve their software practice and strengthen their theoretical knowledge.
- Use of VMG databank, simulation of mixtures
- Vibration analysis
- Condensers, top column, mixed gas
- Kettle & thermosiphon reboilers
While being sophisticated, the usual thermal design software does not provide an optimized and safe mechanical design…
Cap Engineering has decided to get as complementary tools:
- PV Elite to drive the mechanical design of shell and tube heat exchangers according to ASME or EN13445 codes.
- In-house tools developed from Roark’s formulas to secure the design of cubic bloc technologies.
HTRI certificates and training
Attestation HTRI member 2016-2019
Condensers Workshop - HTRI Training Europe - Berlin, Germany - November 27, 2014
Reboilers Workshop - HTRI Training Europe - Berlin, Germany - November 26, 2014
VMG Selection - HTRI
XIST Workshop - HTRI Training Europe - Florence, Italy - March 12, 2013
XIST Workshop - HTRI Training Europe - Florence, Italy - March 10-11, 2014
Need expert advice?
Every project is unique. Let’s discuss your process constraints and your goals.
